• Robust design for demanding farm and lifestyle use
• Engineered for maximum longevity with premium materials
• Competitive pricing for exceptional value

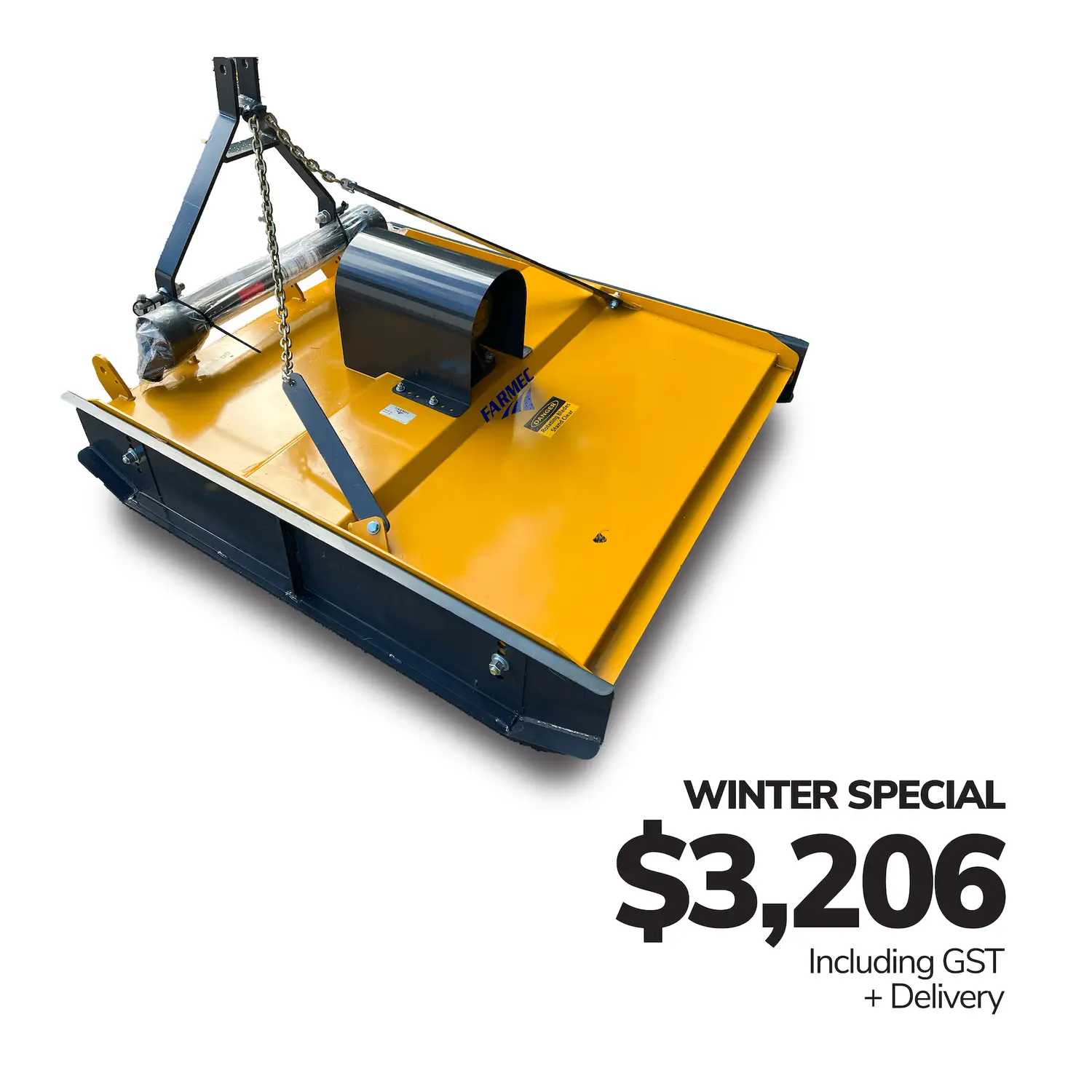

CAPACITY: 1,200mm cutting width
PTO SHAFT: 1,000mm end to end as standard
GEARBOX: 40 hp oil bathed as standard
BODY LENGTH: 1,420mm
BODY WIDTH: 1,320mm
CUTTING HEIGHT: 1” to 5” (25 to 125mm)
SKIDS: 3mm pressed with 10mm wear strip
FINISH: Blasted, zinc base primer, 2 x gloss coats
HEADSTOCK: CAT 1 or CAT 2
• Robust design for demanding farm and lifestyle use
• Engineered for maximum longevity with premium materials
• Competitive pricing for exceptional value
BODY: Pressed 4mm steel

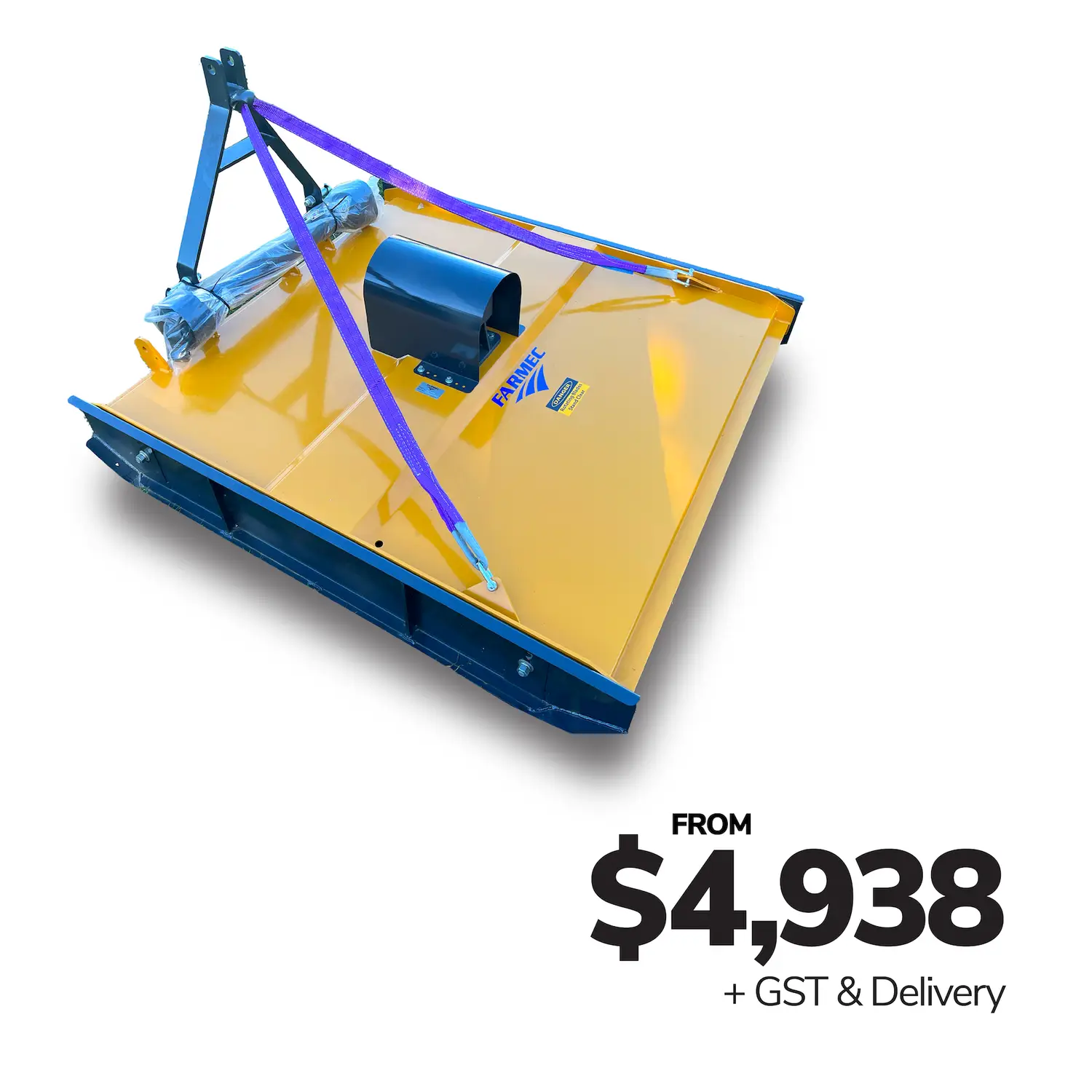

CAPACITY: 1,500mm cutting width
PTO SHAFT: 1,200mm end to end as standard
GEARBOX: 40 hp oil bathed as standard
BODY LENGTH: 1,720mm
BODY WIDTH: 1,620mm
CUTTING HEIGHT: 1” to 5” (25 to 125mm)
SKIDS: 4mm pressed with 10mm wear strip
HEADSTOCK: CAT 2
FINISH: Blasted, zinc base primer, 2 x gloss coats
• Robust design for demanding farm and lifestyle use
• Engineered for maximum longevity with premium materials
• Competitive pricing for exceptional value
CAPACITIES: 2 bale
BALE TYPES: Round bales / Chopped bales achievable / Squares recommended
FEED TYPES: Silage-Hay-Straw
CHASSIS: Fully welded RHS
FLOOR: Full steel floor
LOADING: Via self-loading / transporting forks
OIL REQUIREMENT: Minimum of 32 litres / minute
HYDRAULIC REQUIREMENTS: 2 x double acting
SHIPPING SPEC: Length 3.3m x Width 2.35m x Height 1.2m (packed) WEIGHT: 940kgs
• Robust design for demanding farm and lifestyle use
• Engineered for maximum longevity with premium materials
• Competitive pricing for exceptional value

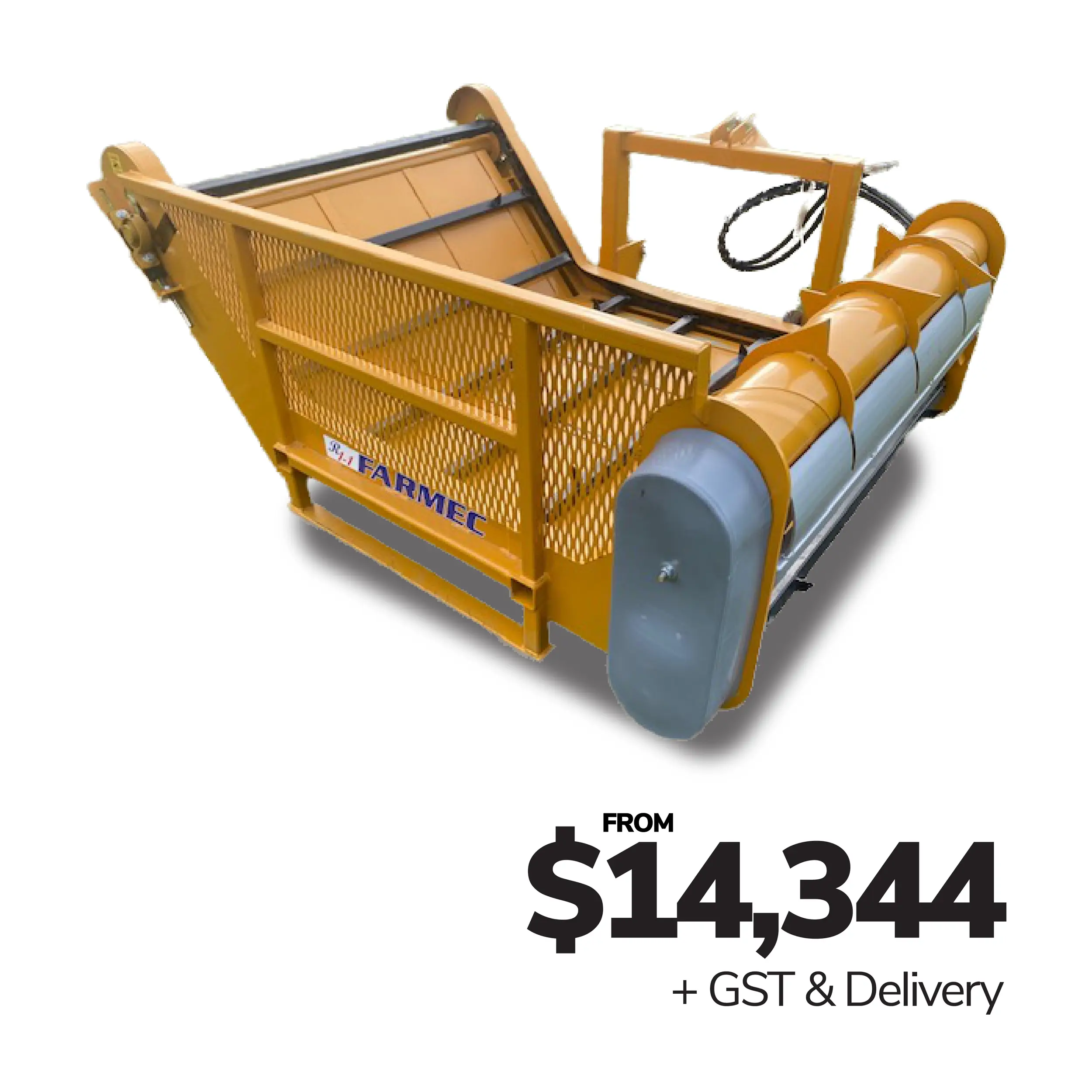

CAPACITIES: 1 bale
BALE TYPES: Round bales / Chopped bales achievable / Squares recommended
FEED TYPES: Silage-Hay-Straw
CHASSIS: Fully welded RHS
FLOOR: Full steel floor
LOADING: Via 3 point linkage mounted forged tines
OIL REQUIREMENT: Minimum of 32 litres / minute
HYDRAULIC REQUIREMENTS: 1 x double acting
SHIPPING SPEC: Length 2.3m x Width 1.75m x Height 0.9m (packed)
WEIGHT: 640kgs

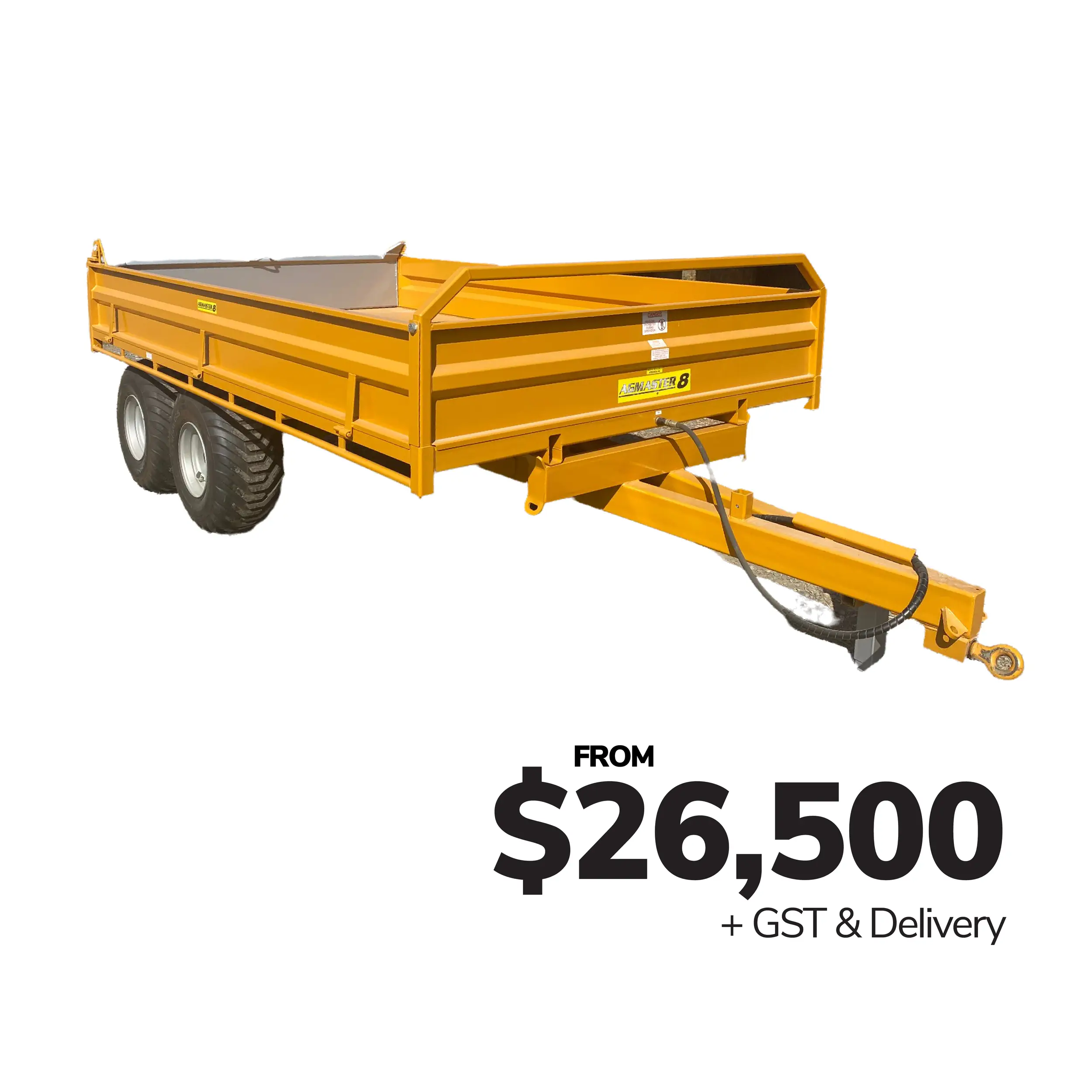

• Phenomenally stable due to low centre of gravity
• Hits the sweet spot for capacity, strength, reliability, function and pricing
CAPACITY: 8 tonne / 4.1m³ level loaded at 2,000kgs/m³
BODY TYPE: Flat floor with hinged removable sides
BODY LENGTH: 4,000mm
BODY WIDTH: 2,440mm
RAM TYPE: Hydraulic multi-stage cylinder
FLOOR THICKNESS: 4mm Corten braced every 400mm
